(1), 219 x7500x8 columns. 0 mm beam: 2-89 x4500x6. 0 mm base flange: 500 x500x16mm

(2), 273 x7500x8 columns. 0 mm beam: 2-133 x4500x6. 0 mm base flange: 600 x600x20mm

(3), 325 x7500x8 columns. 0 mm beam: 2-159 x4500x6. 0 mm base flange: 700 x700x24mm

】 【 sign board commonly used specifications

(1), 3000 x1500mm (2), 3000 x2000mm (3), 3000 x2000mm (4), 4000 x2200mm (5), 4000 x2400mm

USES aluminium plate: 3.0 mm, 2.5 mm and 2.0 mm, 1.8 mm and 1.5 mm, etc.;

Adopt reflective film: 3 m diamond level (level 1), 3 m super level (level 2), domestic super grade/high level (level 3), 3 m project level (level 4);

General configuration 】 【 foundation cage

(1), 219:219 x 500 x 500 mm wide

(2), 273:273 x 600 x 600 mm wide

(3), 325:325 x 700 x 700 mm wide

Description 】 【 bar materials

Steel pipe: Q235 aluminium plate: pure aluminium plate: 1060 hot rolled plate Q235 steel, round steel

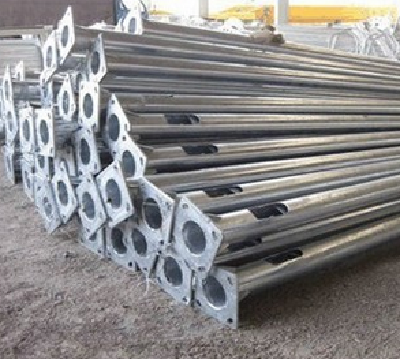

【 bar pillar features 】

Traffic signs rod welding carefully, to achieve the design finish, verticality, no distortion, no pores, remove welding slag, oil, by hot dip galvanized anti-corrosion treatment
